18 kg · 260 kg WLL · IP56 · 150 m remote · Highest working load we stock
$11,100 USDIn stock
Pay over time (US customers) with

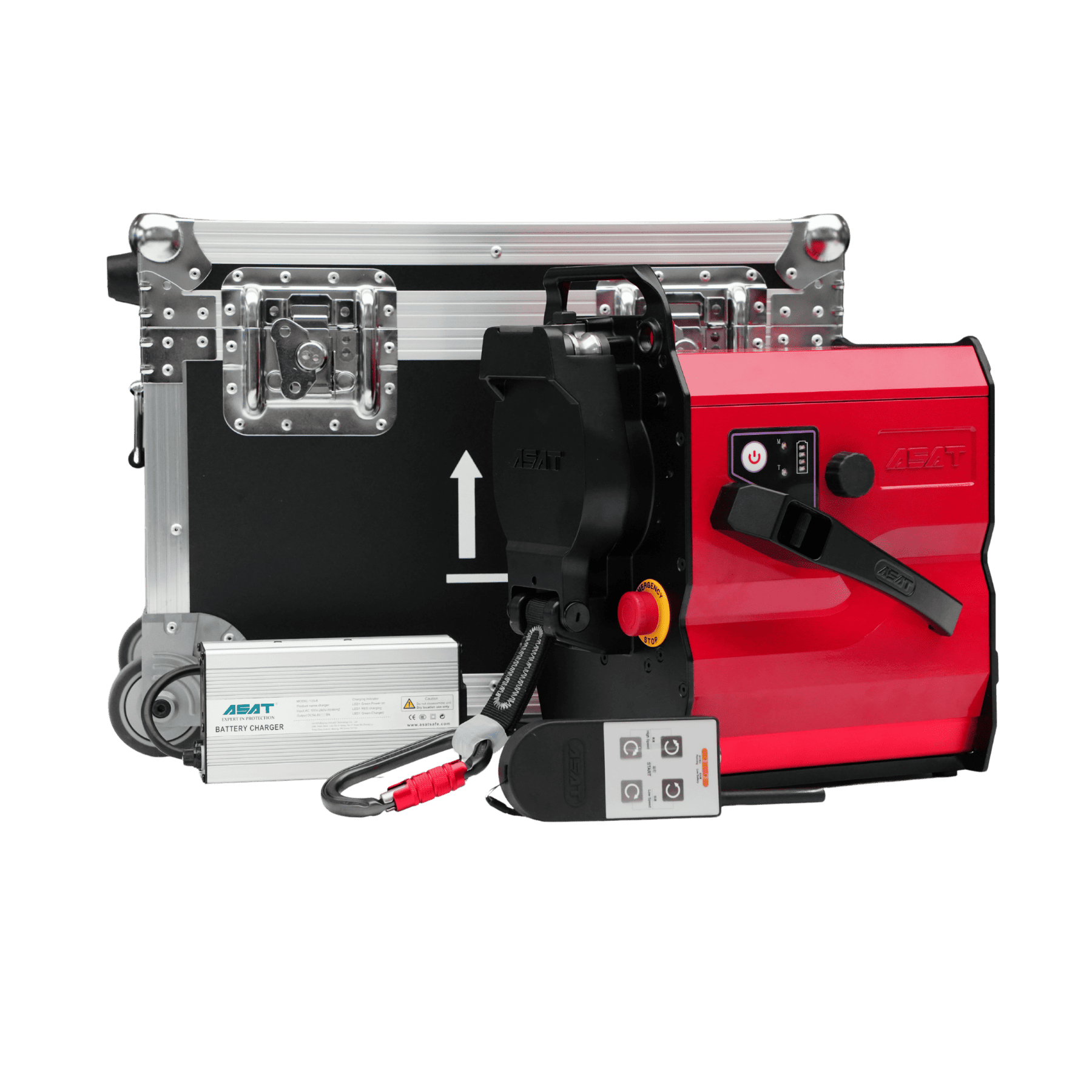

The ASAT ACE-24 is a battery-powered rope ascender — a personal powered elevator that drives a worker up and down a fixed rope for fast, efficient access where climbing is hard or impossible. It is the highest-capacity model in the ACE range.
It runs on an Ø11 mm EN 1891 A semi-static rope with stepless speed control, carries a rated 180 kg (397 lb) — 260 kg working load limit — and ascends at up to 30 m/min and descends at up to 40 m/min, powered or manual. The swappable battery charges in under an hour and covers roughly 700 m of alternating up/down travel — or 300 m of continuous ascent — at 150 kg. Overheat protection, an IP56 rating, a −30 to +60 °C range and 0–150 m remote control round it out.
Certification: CE marked under the Machinery Directive 2006/42/EC. The ACE range is covered by EC type-examination certificate 3400220822, issued by Safenet Certification Services (Notified Body 2805).
Important: a powered ascender is a work/access device used on the working rope. It must always be used together with a separate backup fall-arrest device on an independent safety rope.
Built for renewable energy, utilities, inspection and maintenance, rescue and high-rise cleaning. Contact us for a quote and lead time.
The ASAT ACE-24 power ascender is the one to specify when capacity and range decide the job. Where portability matters more, the ASAT ACE-22 power ascender is backpack-sized at 10.5 kg and the ASAT ACE-51 power ascender weighs 3.5 kg without its battery. All three ASAT power ascenders run on the same Ø11 mm EN 1891 A rope.

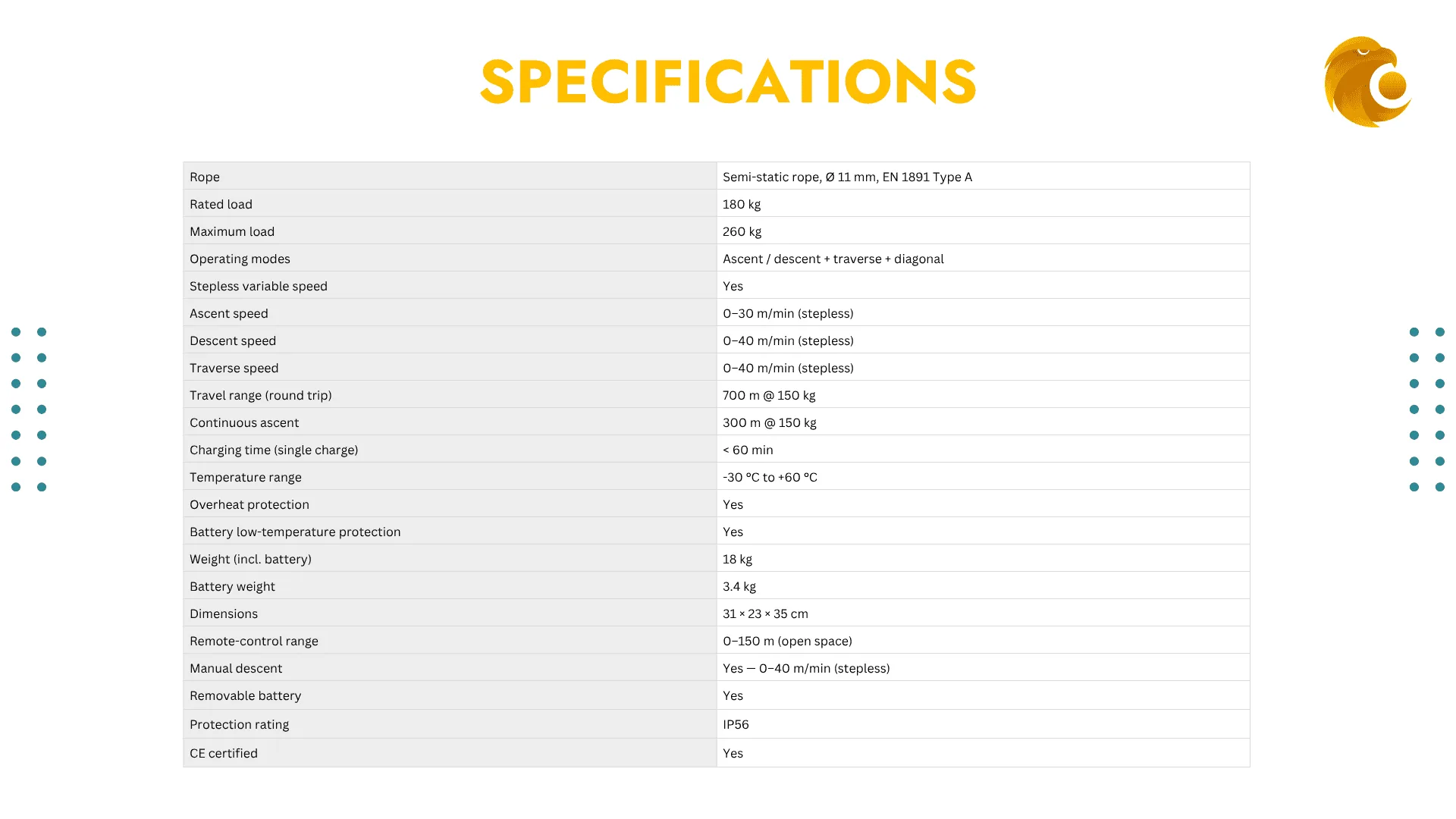

| Manufacturer | ASAT |
|---|
| Device | CE marked — Machinery Directive 2006/42/EC |
|---|---|
| Rope standard | EN 1891 A (semi-static) |
| Type | Powered rope ascender — work/access device (not a fall arrester) |
| Type-examination | EC type-examination by Safenet Certification Services Ltd (Notified Body 2805, Ireland), certificate 3400220822 version 3, valid to 07/09/2027 |
| Ascent speed | 0–30 m/min (stepless) |
|---|---|
| Descent speed | 0–40 m/min (powered or manual) |
| Rated load | 180 kg (397 lb) |
| Working load limit | 260 kg |
| Manual descent | Yes (0–40 m/min, stepless) |
| Range (alternating) | ≈700 m @ 150 kg |
|---|---|
| Range (continuous ascent) | ≈300 m @ 150 kg |
| Rope | Ø11 mm semi-static, EN 1891 A |
| Battery | Swappable lithium-ion |
|---|---|
| Charge time | < 60 min |
| Remote control | 0–150 m |
| Dimensions | 31 × 23 × 35 cm |
|---|---|
| Ingress protection | IP56 |
| Protection | Overheat protection |
| Temperature range | −30 to +60 °C |
| Weight | 18 kg (40 lb) incl. battery |
Add the complements you need — each is added on its own.
The ACE-24 is the largest ascender ASAT builds and the highest-capacity unit we stock. It carries a rated 180 kg with a 260 kg working load limit — enough for two people with kit, or an operator bringing a casualty down — and it does it on the same Ø11 mm rope as the rest of the range.
Range is what sets it apart. One swappable battery covers 300 m of continuous climbing at 150 kg, or around 700 m of alternating up-and-down travel. That is a full turbine tower without coming off the rope, and a recharge takes under an hour.

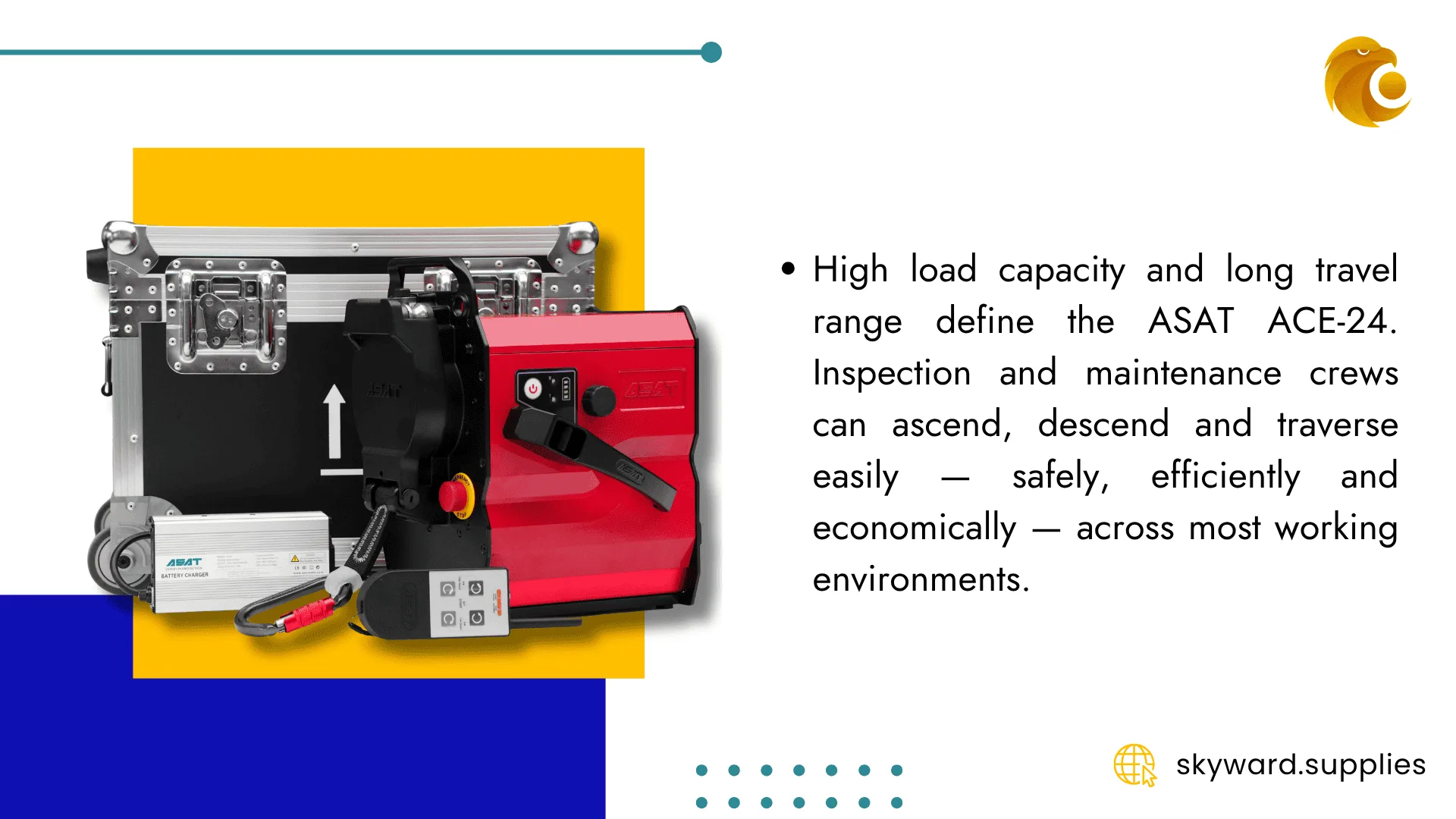

It is rated from −30 °C to +60 °C, the widest window in the range, with overheat protection built in and an IP56 sealed body. It ships in a wheeled metal transport case, because at 18 kg you roll it to the anchor rather than carry it.
Rated 180 kg, with a 260 kg limit — two people with equipment, or a rescue load.
At 150 kg, on one battery. Around 700 m if you are going up and down. Recharge under an hour, and the pack swaps out.
The widest temperature window in the ACE range, from −30 °C to +60 °C.
Descends at up to 40 m/min under power — and at the same stepless speed by hand, without power.
Built into the drive, for long continuous runs under load.
Sealed against dust and powerful water jets, and it rolls to the anchor in its metal transport case.
Most powered ascenders are specified by how much they lift. The ACE-24 is specified by how far it goes with that load on: 300 m of uninterrupted climbing at 150 kg, or roughly 700 m of alternating travel, on a single swappable battery that recharges in under an hour. On a turbine, that is the difference between one ascent and three.
A 260 kg working load limit is not just a bigger number — it changes what the unit is for. Two technicians on one rope. An operator with a full tool bag and a replacement part. A rescue where the casualty comes down with the rescuer. The ACE-24 is the unit you specify when the load is not one person travelling light.
Rated from −30 °C to +60 °C with overheat protection and an IP56 sealed body, the ACE-24 is built for the sites where the weather does not cooperate and the shift does not get shorter. It travels in a wheeled metal case with the charger and the remote, so the whole system moves as one piece.
Controlled lowering by hand at up to 40 m/min, stepless, without power — documented by the manufacturer for this model.
The drive protects itself on long continuous runs under load.
No steps and no jolts in either direction, so the load never takes a shock it did not need.
IP56 ingress protection and a −30 °C to +60 °C operating range.
The ACE-24 is CE marked under the Machinery Directive as a powered access and lifting device. It is not personal protective equipment and it is not a fall arrester. It goes on the working rope; your fall-arrest device goes on a separate safety rope. No powered ascender, from any manufacturer, replaces your fall protection.
The ACE-24 is CE marked under the Machinery Directive 2006/42/EC, with EC type-examination carried out by Safenet Certification Services, Notified Body 2805, certificate 3400220822.
Every unit ships with its EC Declaration of Conformity and its final inspection report — in the case, not on request.
The ACE-24 is certified as a powered access and lifting device. It is not personal protective equipment and it is not certified as a fall arrester. It is used on the working rope, with an independent safety rope and a certified fall-arrest device. Any supplier who tells you otherwise is selling you a risk.
| Brand | Reference | Diameter | Colour | Made in |
|---|---|---|---|---|
| ASAT | AR-TS03-11 | 11 mm | White | China |
| Petzl | AXIS | 11 mm | White | France |
| STERLING | WorkPro | 11 mm | White | USA |
| TEUFELBERGER | Ultrastatic | 11 mm | Black | Austria |
| TEUFELBERGER | KMIII | 11 mm | White | Austria |
Rope is not supplied with the unit. Confirm the rope against the manufacturer's current documentation before use.
Tell our technical team the load, the height and the conditions — and whether anyone is coming down with the operator — and we will spec the unit and the rope with you before you buy.
