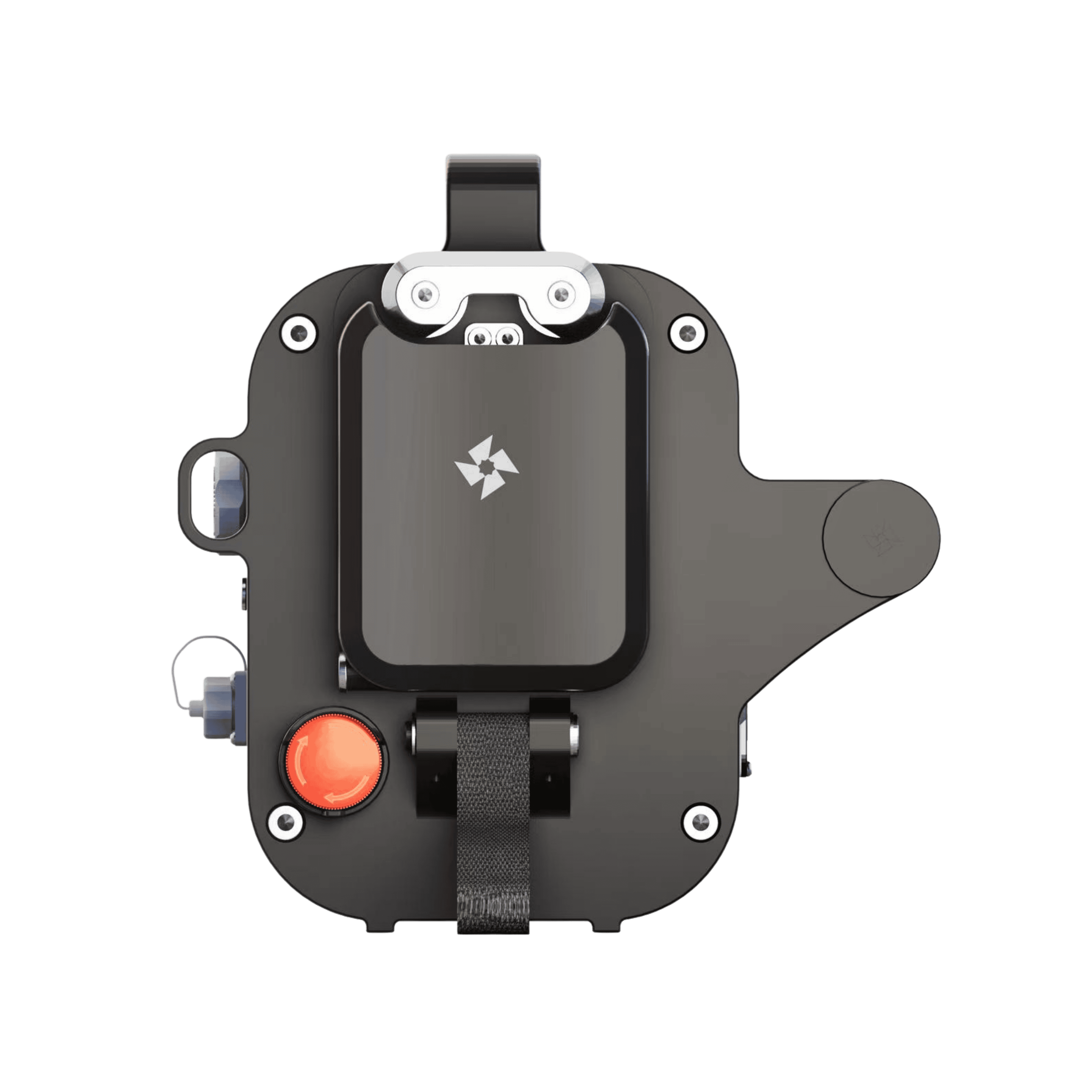

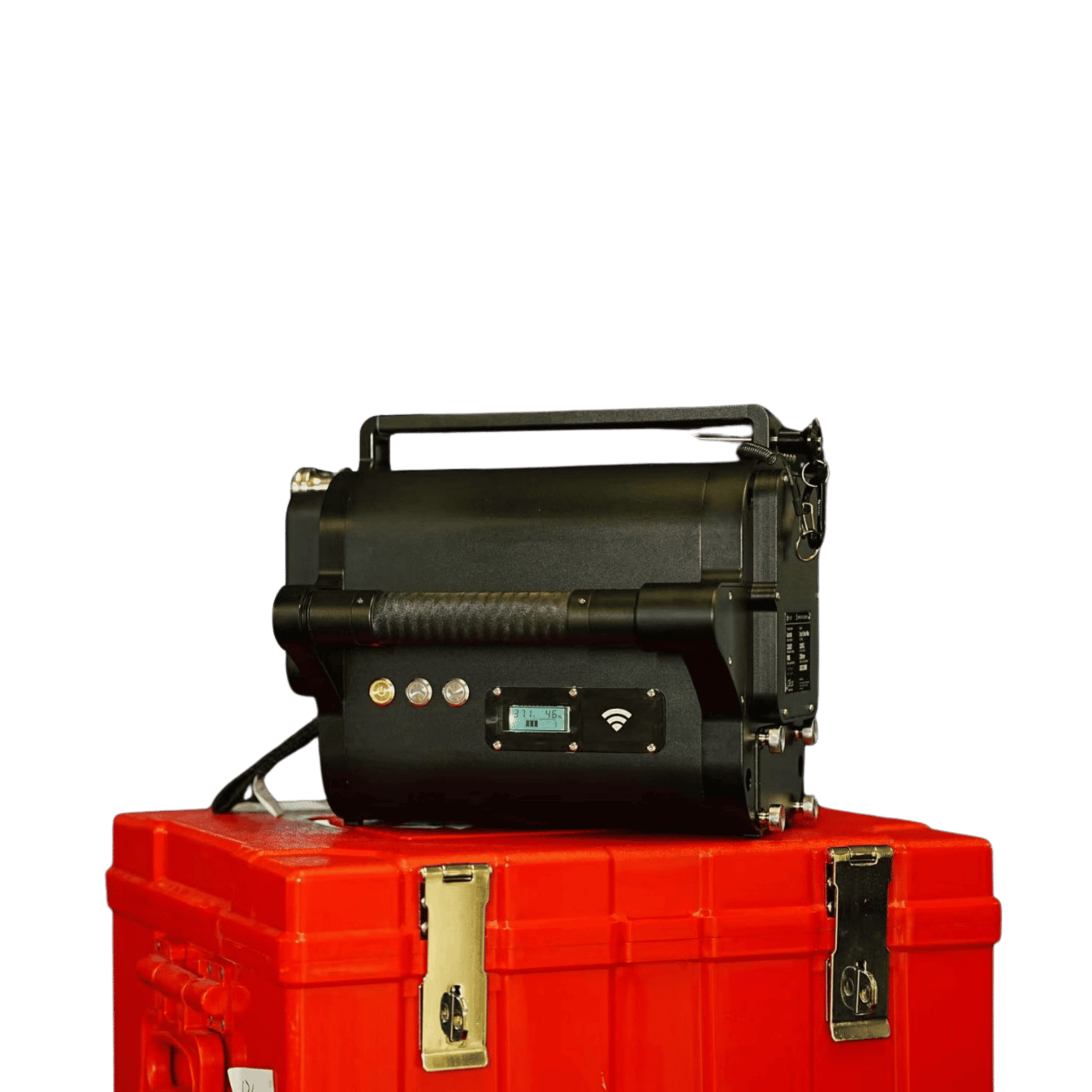

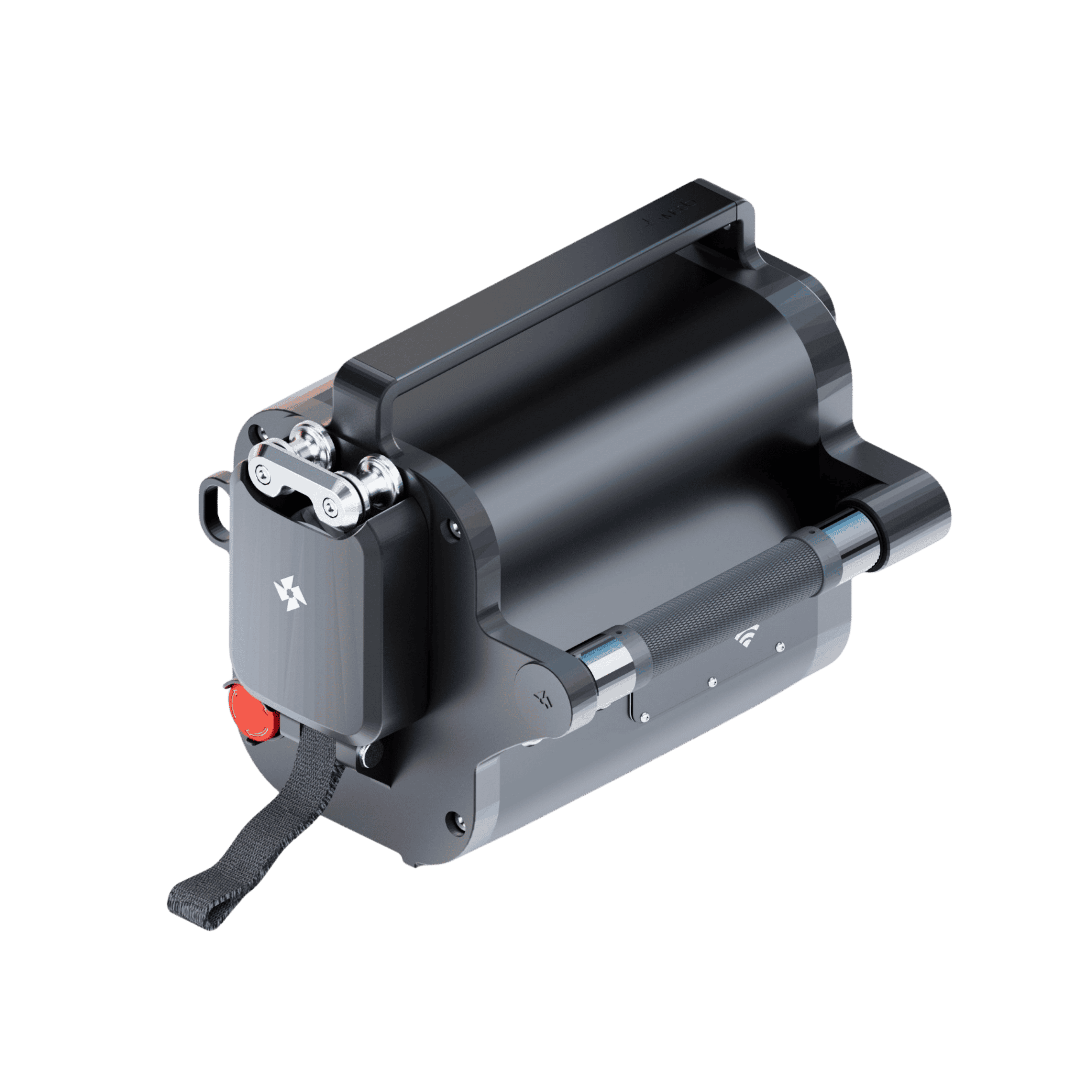

Spider Pro Max Power Ascender

Powered ascent for harsh environments and demanding work at height

The Spider Pro Max (Mode SmartSpider Max) is a battery-powered rope ascender — a compact motorized winch that climbs a fixed rope, carrying a technician or a load of up to 200 kg at up to 22 m/min. With a 450 m round-trip working range per battery (100 kg load) and an IP65 rating, it is the long-endurance model in the SmartSpider line, built for full shifts on towers, facades, bridges and turbines.

For day-to-day rope access — facade work, inspection, telecom and industrial maintenance — the Smart Spider Pro is the everyday machine in the range.

Key features

• 1000 W motor with multi-stage planetary gearbox — constant torque, low heat, precise stepless speed control (ascent 0–22 m/min, descent 0–30 m/min).
• 36 V · 5000 mAh hot-swap Li-ion battery (IEC 62133-2017 certified) with charge/discharge, over-current, short-circuit and temperature protection. Full charge in ~140 minutes.
• Variable speed control handle, one-key up/down, emergency stop button, and a mechanical emergency-lowering lever for controlled descent even with electrical failure.
• WiFi app control (Mode app) up to 100 m — operate and monitor battery level remotely, ideal for lifting loads or assisted rescue.
• Rope path with guided rollers and a locking rope-protection cover.

Applications

Rope access at height, wind turbine and skyscraper maintenance, facade and window cleaning, bridge works, offshore and industrial services, rescue and search, scenario construction, and tree maintenance.

Rope requirement

Use with 10–11 mm EN 1891 semi-static kernmantle rope (sold separately).

Safety notice

The winch is an access device, not a fall-arrest device. During any lifting of persons, the operator must use an independent backup safety system (e.g. a rope-operated fall arrester) installed on a second safety rope of a different color, with a harness suitable for suspended work. Plan the job, prepare a rescue plan, and fully inspect all components before each use, following the manufacturer's instructions.
