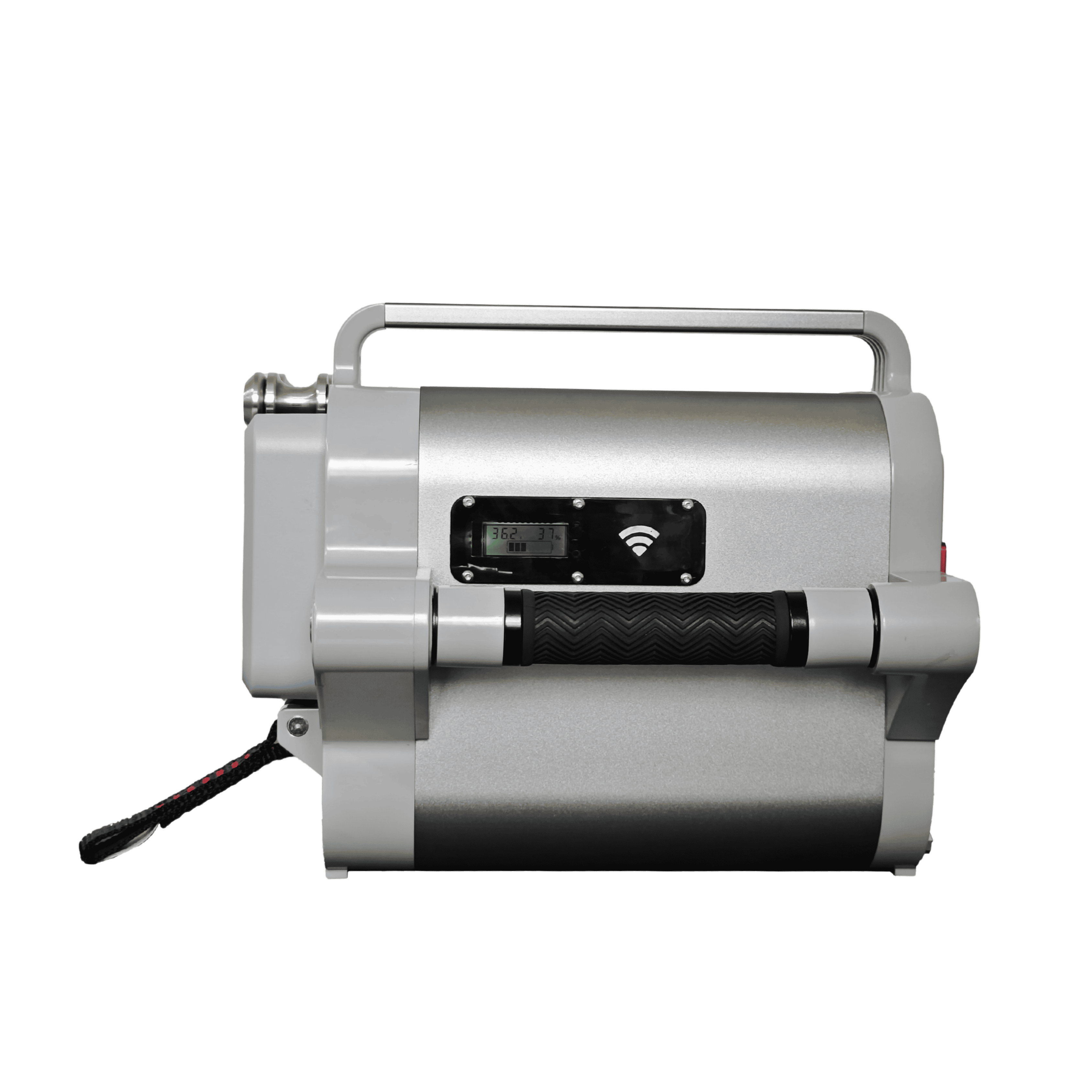

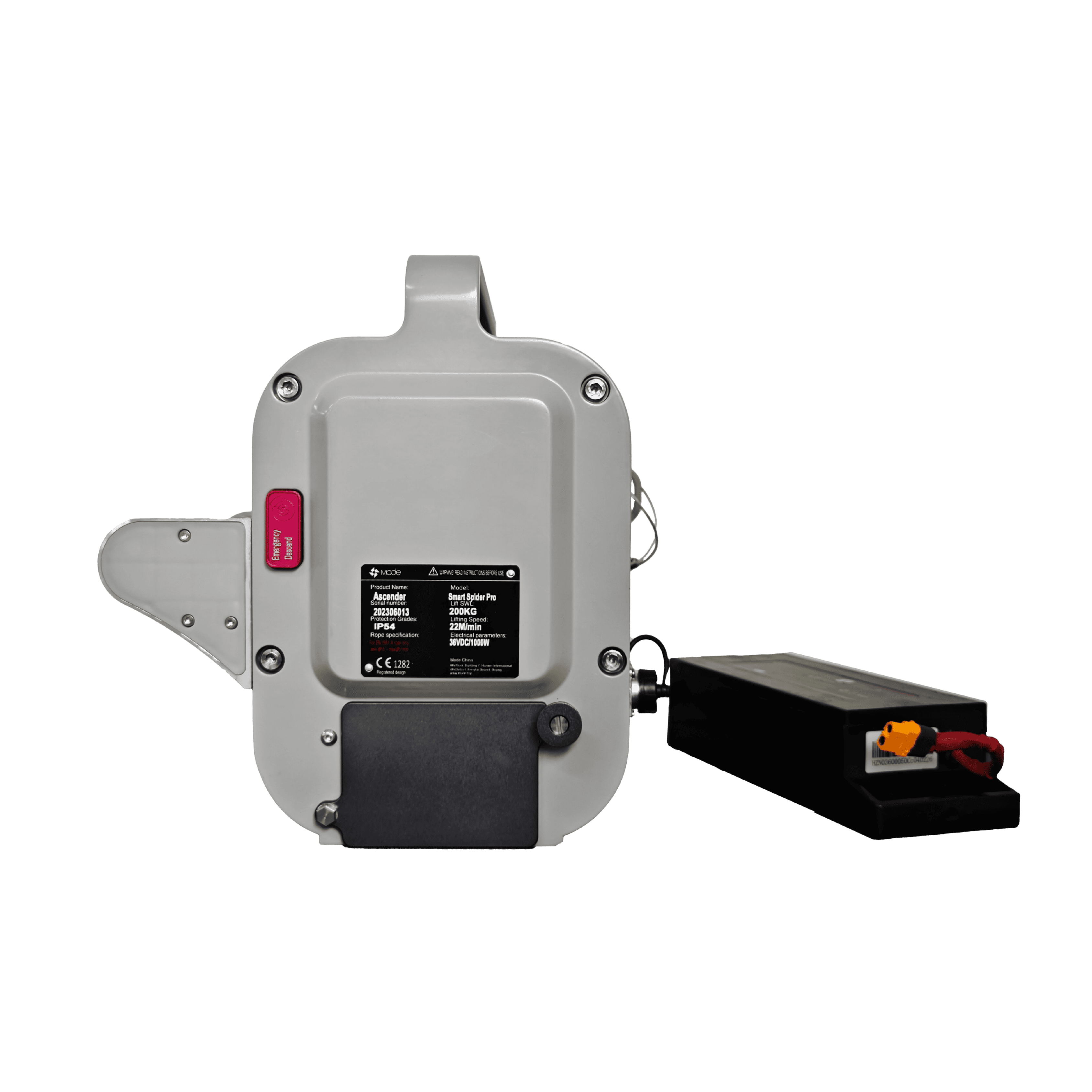

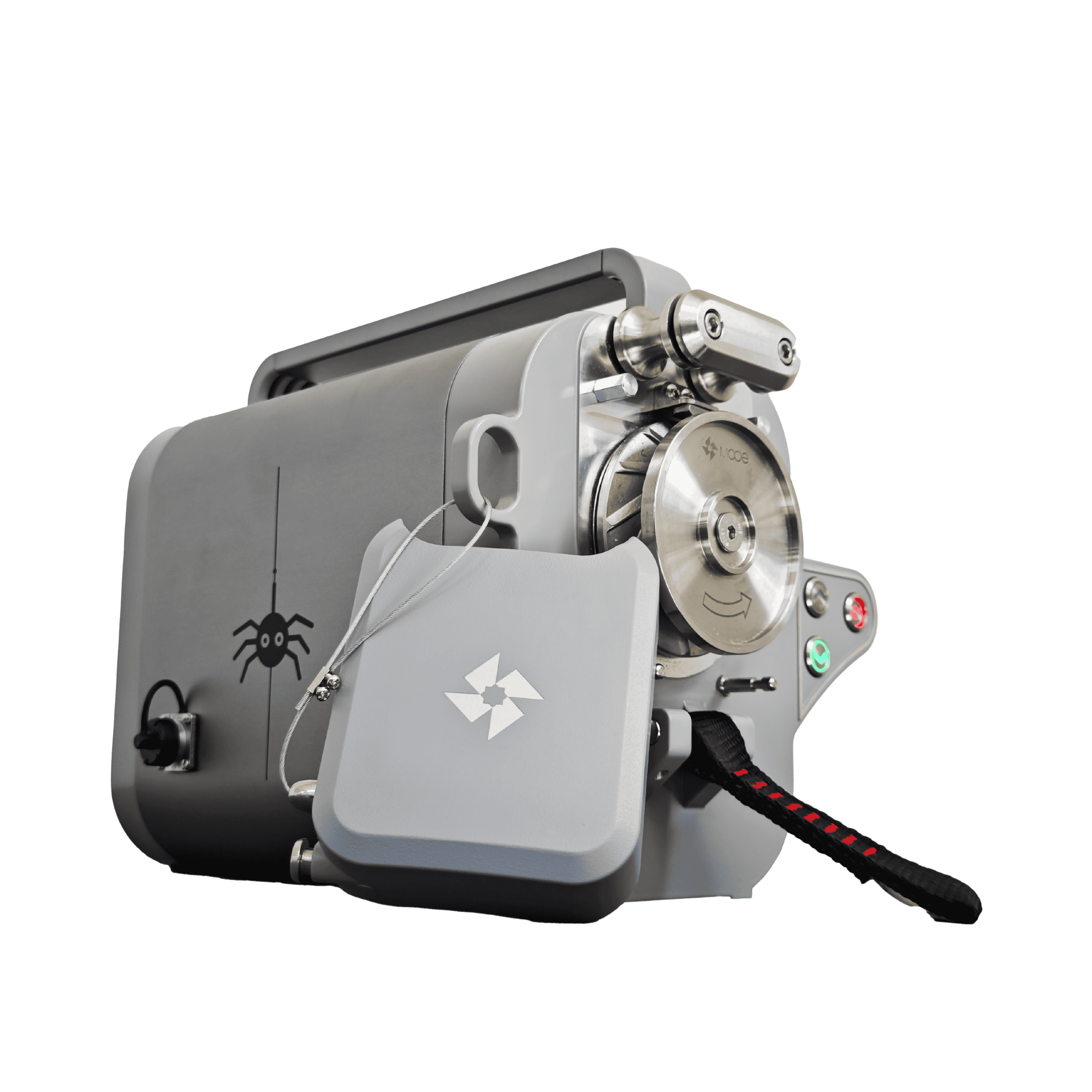

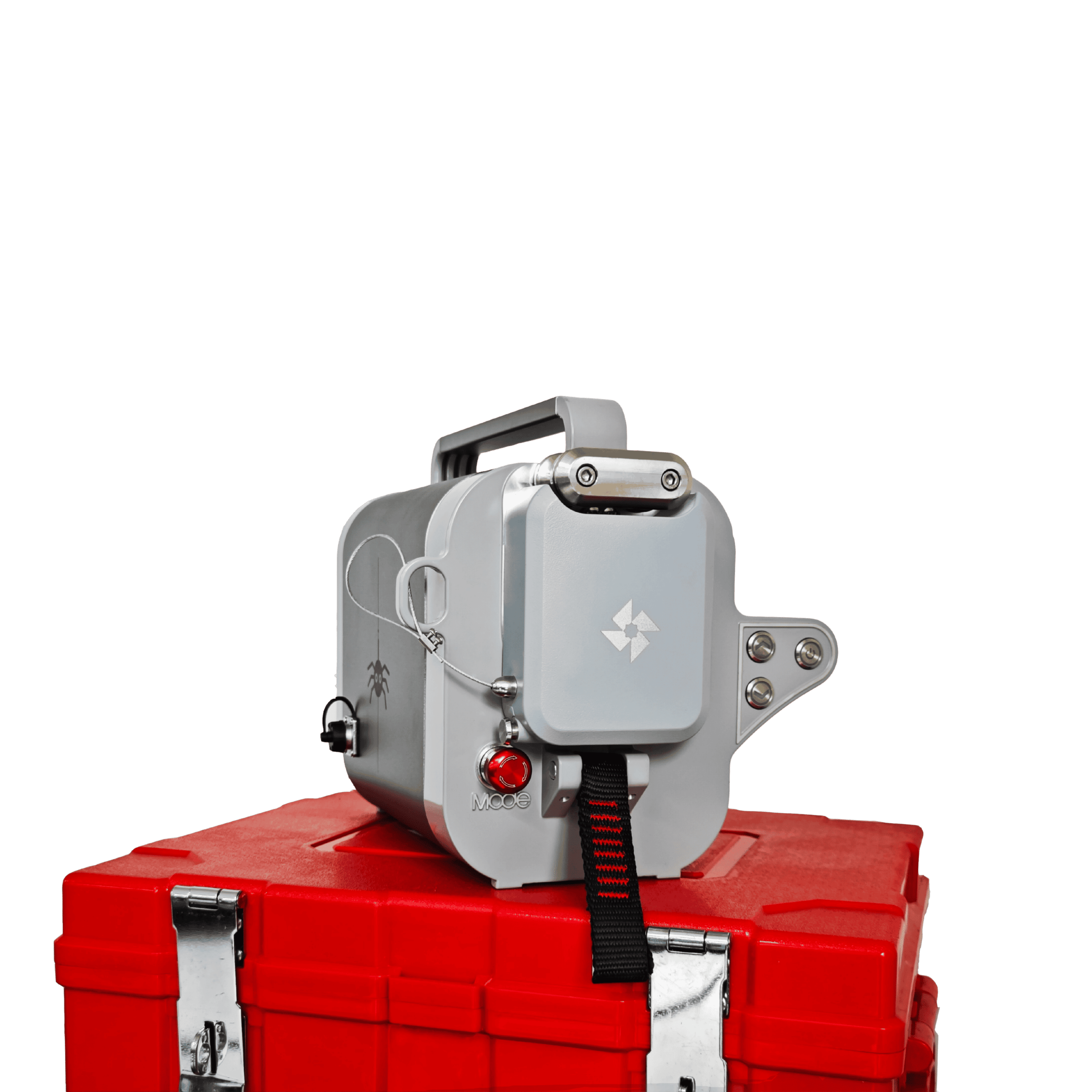

Smart Spider Pro Power Ascender

High-capacity powered ascent for facade, telecom and industrial work

The Smart Spider Pro (Mode SmartSpider Pro) is a battery-powered rope ascender — a compact motorized winch that climbs a fixed rope, carrying a technician or a load of up to 200 kg. At up to 20 m/min, with a 330 m working range per battery (120 kg load) and descent speeds up to 37 m/min, it is the agile workhorse of the SmartSpider line for facade work, inspection, telecom and industrial maintenance.

For rescue work and sites that punish equipment, the Spider Pro Max is the one built to stay out there: sealed to IP65 against dust and water jets, with a locking rope-protection cover and a 450 m round trip per charge at 100 kg.

Key features

• 1000 W motor with multi-stage planetary gearbox — constant torque, low heat, precise stepless speed control (ascent up to 20 m/min, descent up to 37 m/min).
• 36 V · 5000 mAh hot-swap Li-ion battery (IEC 62133-2017 certified) with charge/discharge, over-current, short-circuit and temperature protection — swap packs and keep working.
• Variable speed control handle, one-key up/down, emergency stop button, and a mechanical emergency-descent control for controlled lowering even with electrical failure.
• WiFi app control up to 100 m — operate and monitor battery level remotely, ideal for lifting loads or assisted rescue.
• Aviation aluminum alloy body, IP54 protection, operating range −20 °C to +50 °C.

Applications

Rope access at height, wind turbine and skyscraper maintenance, facade and window cleaning, bridge works, offshore and industrial services, rescue and search, scenario construction, and tree maintenance.

Rope requirement

Use with 10.5–11 mm EN 1891 semi-static kernmantle rope (sold separately).

Safety notice

The winch is an access device, not a fall-arrest device. During any lifting of persons, the operator must use an independent backup safety system (e.g. a rope-operated fall arrester) installed on a second safety rope of a different color, with a harness suitable for suspended work. Plan the job, prepare a rescue plan, and fully inspect all components before each use, following the manufacturer's instructions.
