Confined-space rescue tripod + winch — EN 795:2012 Type B, EN 1496:2017 Type A (CE Cat III)
$795 USDIn stock
Pay over time with , , or , for US customers paying in USD.

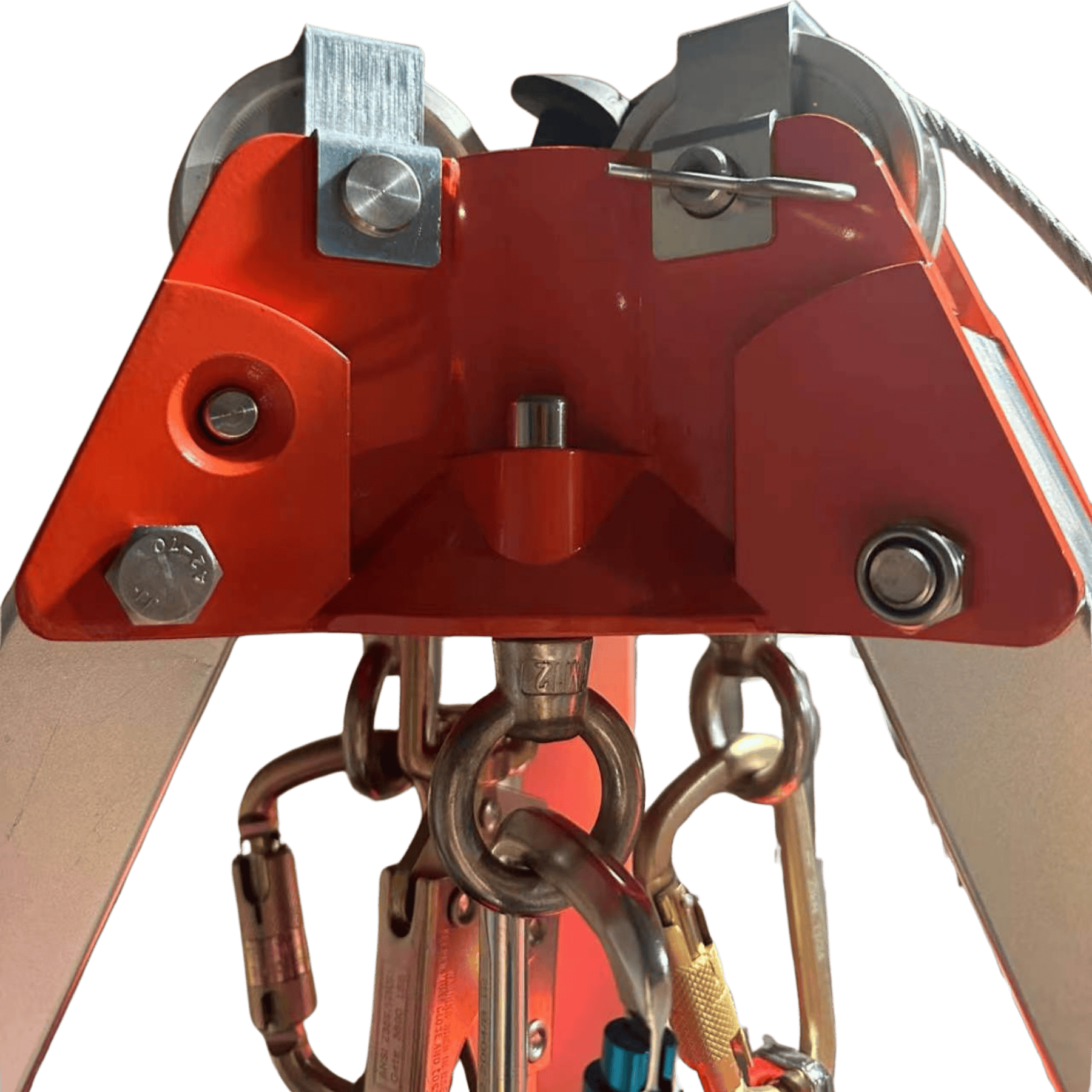

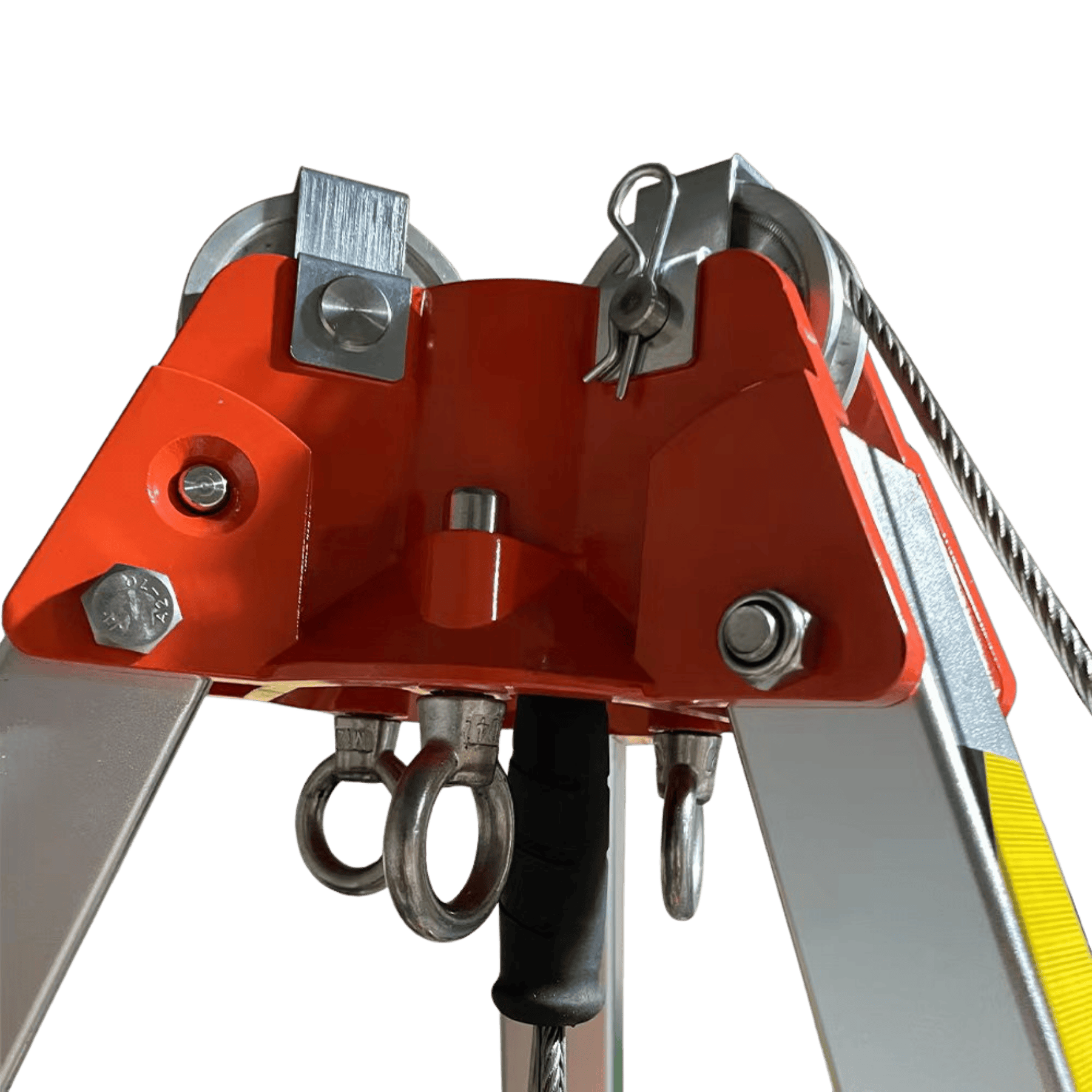

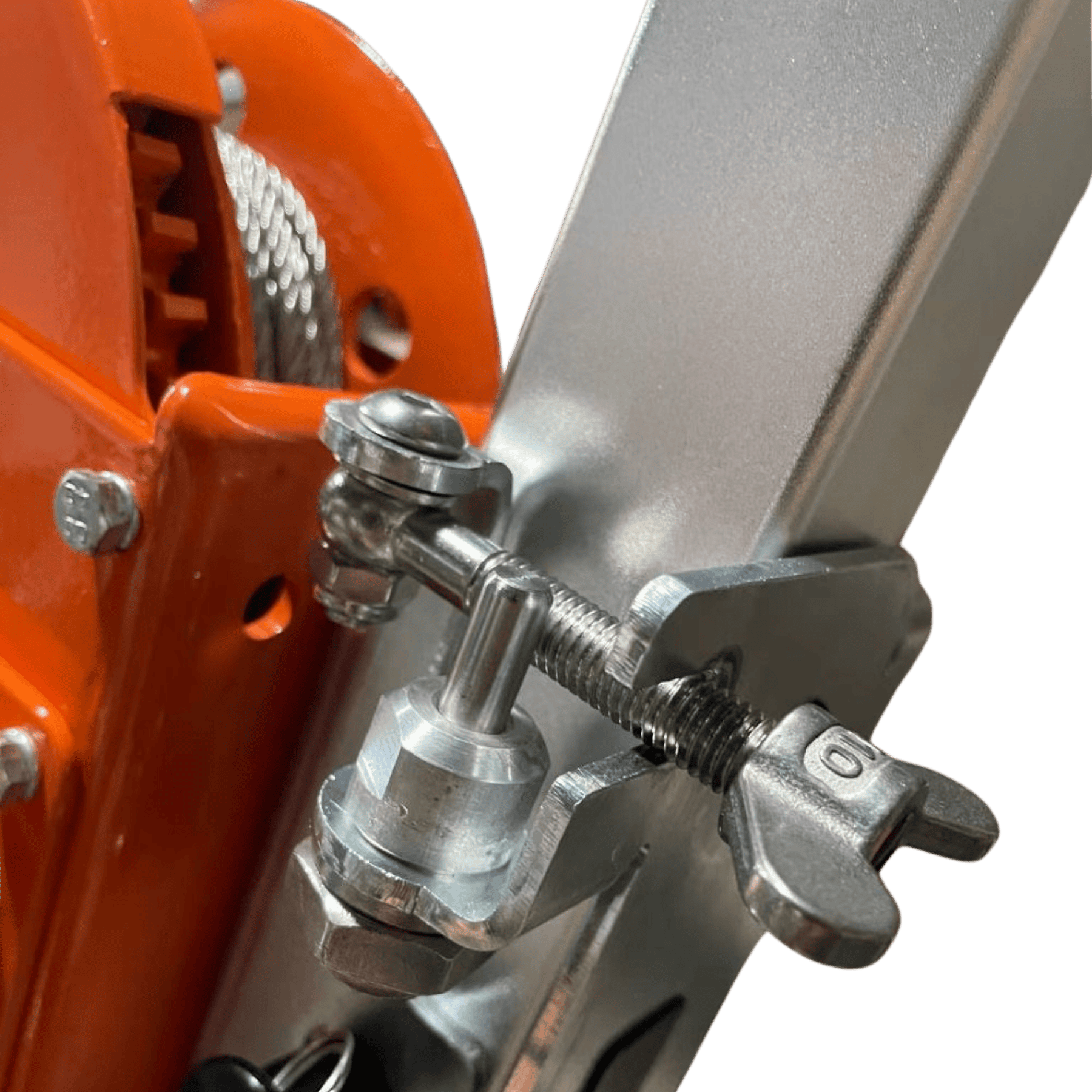

The Top Lift TP-900015 is a portable rescue tripod with an integrated winch, certified as Category III PPE under Regulation (EU) 2016/425. It sets up over manholes, tanks, shafts and other confined-space or work-at-height openings to provide an overhead anchor point for access, fall protection and rescue.
CE marked, Category III PPE. EU type-examination (Module B) and production quality assurance (Module D) by CCQS (Notified Body 2834): certificates CE-PC-260202-108-01-9A and CE-PC-260202-108-FPC-A. Manufactured by Hangzhou Top Lift Industries Co., Ltd.
Single set ships in a 178 × 32 × 32 cm box. Pallet quantity: 9 sets (365 kg, 1.2 m³).
This is life-safety equipment for trained users only. Set up and operate it strictly according to the manufacturer’s instructions and a documented rescue plan, and inspect it before every use. The winch line is a rescue lifting device — where the work system calls for fall arrest, use it together with an appropriate, independently anchored backup.
| Type | Fall-arrest mobile anchor device — rescue tripod with winch · Category III PPE (Regulation (EU) 2016/425) |
|---|---|
| Tripod (anchor device) | EN 795:2012 Type B + PD CEN/TS 16415:2013 Type B (multi-user) |
| Winch (rescue lifting device) | EN 1496:2017 Type A |
| EU Type-Examination (Module B) | CCQS — Notified Body 2834 · cert. CE-PC-260202-108-01-9A |
| Production Quality Assurance (Module D) | CCQS — Notified Body 2834 · cert. CE-PC-260202-108-FPC-A |
| Manufacturer | Hangzhou Top Lift Industries Co., Ltd. (China) |
| Max users | 3 |
|---|---|
| Anchorage points | 3 |
| Adjustable height | 1.5–2.5 m |
| Max working load | 750 kg |
| Weight | 21.05 kg |
| Material | Aluminum alloy & alloy steel |
| Rated users | 1 |
|---|---|
| Max rated load | 140 kg |
| Wire rope | 5 mm stainless steel |
| Wire rope length (this unit) | 30 m (range 10–35 m) |
| Max lifting distance | 35 m |
| Material | Alloy steel |
| Includes | Tripod, 3 pulleys / anchor points, winch, 30 m stainless-steel wire rope |
|---|---|
| Box dimensions | 178 × 32 × 32 cm |
| Set weight | ≈40.5 kg (derived from full pallet: 365 kg / 9 sets) |
| Pallet | 9 sets · 365 kg · 1.2 m³ |
